PowerMate
We want to enable and support our customers with the industrialization of electric propulsion systems and secure a greener, more sustainable future in the industrial and commercial transportation sector.
Our PowerMate interconnection systems are especially designed for harsh environments with hard requirements in terms of needed power, durability, environmental influences, UV resistance, vibrations and safety. We proof that by validation according specific standards.

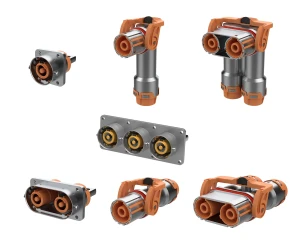

Our PowerMate product is designed in Germany and manufactured in the Czech Republic, EU. PowerMate cable connectors close in each Header variation with a lever, for improved mating forces and handling. The connectors have in mated condition the lowest mounting height on HV interconnection solutions, when the orientation is on connector side. The modular design ensures high flexibility in only two contact sizes, and is usable with 16-150mm² cables with only two different panel cut-outs. We can provide crimp solutions with all wire gauges so no high tool invest for the assembly of connectors necessary. For specific ultra-Sonic welding solutions feel free to contact us anytime.
Frequently Asked Questions (FAQs)
Here you will find a list of the contacts used for our PowerMate products, including the corresponding 3D models:
PowerMate 300
For 16 mm² cross-section: N 01 080 6917 002 (straight), N 19 080 0012 6 (angled)
For 25 mm² cross-section: N 01 080 6916 002 (straight), N 19 080 0011 6 (angled)
For 35 mm² cross-section: N 01 080 6915 002 (straight), N 19 080 0010 6 8 (angled)
For 50 mm² cross-section: N 01 080 6914 002 (straight), N 19 080 0009 6 (angled)
For 70 mm² cross-section: N 01 080 6913 002 (straight), N 19 080 0008 6 (angled)
PowerMate 500
For 70 mm² cross-section: N 01 140 6912 002 (straight), N 19 140 0008 6 (angled)
For 95 mm² cross-section: N 01 140 6911 002 (straight), N 19 140 0007 6 (angled)
For 120 mm² cross-section: N 01 140 6910 002 (straight), N 19 140 0006 6 (angled)
For 150 mm² cross-section: N 01 140 6909 002 (straight), N 19 140 0004 6 (angled)
Here you will find a list of the shielding components used for our PowerMate products, including the corresponding 3D models:
PowerMate 300
For 16 mm² cross-section: C215 N09 142 G02, C215 N11 142 E02
For 25 mm² cross-section: C215 N09 132 G02, C215 N11 132 E02
For 35 mm² cross-section: C215 N09 122 G02, C215 N11 122 E02
For 50 mm² cross-section: C215 N09 112 G02, C215 N11 112 E02
For 70 mm² cross-section: C215 N09 102 G02, C215 N11 102 E02
PowerMate 500
For 70 mm² cross-section: C215 N09 132 G01, C215 N11 132 E01
For 95 mm² cross-section: C215 N09 122 G01, C215 N11 122 E01
For 120 mm² cross-section: C215 N09 112 G01, C215 N11 112 E01
For 150 mm² cross-section: C215 N09 102 G01, C215 N11 102 E01
