HVSL362062C006I
![HVSL362062C006I](https://www.amphenol-industrial.de/media/pages/produkte/ev-steckverbinder/excelmate-eco/kabeldose-2-polig-hvsl362062c006i/17047bac3c-1710324243/ppr-c-users-abaer-desktop-ati-sap-massenuploads-20190904-hvsl362-ppr-hvsl362-hvsl362-plug-300x.jpg)

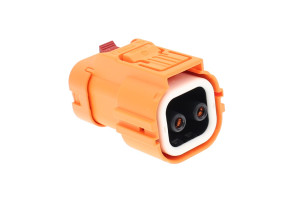

![HVSL362 Cable Plug, 2 pole, 10,0mm², without HVIL, C coded](https://www.amphenol-industrial.de/media/pages/produkte/ev-steckverbinder/excelmate-eco/kabeldose-2-polig-hvsl362062c006i/17047bac3c-1710324243/ppr-c-users-abaer-desktop-ati-sap-massenuploads-20190904-hvsl362-ppr-hvsl362-hvsl362-plug-300x.jpg)
Description: | HVSL362 Cable Plug, 2 pole, 10,0mm², without HVIL, C coded |
rated current (40 °C) | 95 A |
number of positions (w/o PE) | 2 |
rated voltage | 1000 V |
IP-class mated | IP67 |
Product Availability |
Packing Unit: | 96 Pieces |
Min. Order Quantity: | 96 Pieces |
Price per Piece: | €17.64 |
Total Price plus VAT: | €1,693.44 |
Technical Data
part category | female cable connector |
gender | female |
number of positions (w/o PE) | 2 |
IP-class mated | IP67 |
termination | crimp |
rated voltage | 1000 V |
rated current (40 °C) | 95 A |
high voltage interlock | NO |
max. wire gauge | 16 |
min. wire gauge | 6 |
upper temperature | 125 GC |
lower temperature | -40 GC |
Frequently Asked Questions
HVIL, or High Voltage Interlock, is a safety feature of hybrid and all-electric vehicles that protects people during the assembly, repair, maintenance and use of a vehicle. The HVIL system is designed to protect anyone who may come into contact with high-voltage components throughout the lifecycle of an electric vehicle.
HVIL acts as a type of circuit breaker that sends a warning or error message to the driver if a high-voltage connection becomes loose, disconnected or damaged while the vehicle is in operation. HVIL also helps to protect the driver and occupants of a vehicle in the event of an accident. It is possible to order Amphenol Tuchel Industrial's EV connectors with or without HVIL.
Mechanical coding of connectors is a method of ensuring that connectors can only be connected to each other in a specific way. This is particularly important in applications where there are several connectors with different functions or connections in order to avoid mix-ups or incorrect connections.
The advantages of mechanical coding are manifold. It reduces the risk of misconnections, minimizes the likelihood of damage to equipment due to incorrect connections and improves overall system reliability. At Amphenol Tuchel Industrial, the EV connectors (except the MSD series) are mechanically keyed.
Accessory
Housing
Contact
Disclaimer: No liability is accepted for the correctness and completeness of the suggested accessories.
