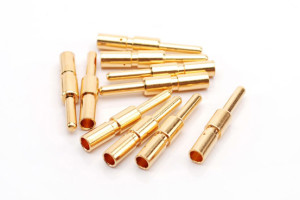

SC000041

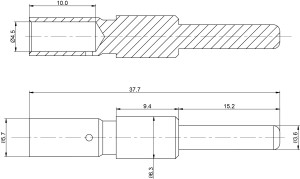

| Description: | Pin Contact; 3,6mm; 4-10mm²; gold-plated; Bag of 500 |
| termination | crimp |
| contact plating | gold |
| Product Availability |
| Packing Unit: | 100 Pieces |
| Min. Order Quantity: | 100 Pieces |
| Price per Piece: | €1.04 |
| Total Price plus VAT: | €104.00 |
Technical Data
| part category | pin contact |
| gender | male |
| contact plating | gold |
| contact diameter | 3,6 mm |
| min. wire gauge | 4 |
| max. wire gauge | 10 |
| crimping tool | WA23 |
| crimping die | WA23-101DA |
| contact locator 1 | MFX-3961 |
| contact removal tool | 50-54931-3 |
Frequently Asked Questions
The following products are required for a complete parts list:
Cable connector and counterpart of the opposite gender (coupling/device part)
Back Shell
Depending on the application: Protective cap
Crimp contacts
Hand crimping tool or pneumatic tool
If you have special requirements regarding the number of cable outlets or their diameter, we will be happy to check the realization of a special version on the basis of the cable datasheet.
Our motion|grade connectors come with a silver-colored metal housing as standard. Alternatively, we will check the color matching of the various components in the desired color for corresponding order quantities.
Our motion|grade connectors are approved with protection class IP67 and are therefore waterproof. The requirement of 30 minutes at a water depth of 1 m is only a minimum requirement. On request, we can test the tightness for special water depths and dwell times.
