C146 A01 001 E8

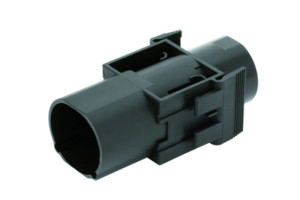

| Description: | C146M; Male Module 1 Pole; Crimp |
| part category | male module |
| number of positions (w/o PE) | 1 |
| rated current (40 °C) | 320 A |
| rated voltage | 1,000 V |
| IP-class mated | IP20 |
| Product Availability |
| Packing Unit: | 10 Pieces |
| Min. Order Quantity: | 10 Pieces |
| Price per Piece: | €2.85 |
| Total Price plus VAT: | €28.50 |
We load the stock please wait a second...
Technical Data
| part category | male module |
| gender | male |
| IP-class mated | IP20 |
| number of positions (w/o PE) | 1 |
| contact diameter | 10,0 mm |
| rated current (40 °C) | 320 A |
| rated voltage | 1,000 V |
| max. wire gauge | 95 |
| min. wire gauge | 50 |
| upper temperature | 125 GC |
| lower temperature | -40 GC |
