heavy|mate C146F

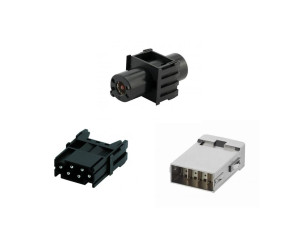

The rectangular connectors of the heavy|mate C146 F series are characterized by the following features:

• Modular connector compatible with market standard

• The connectors are clipped into robust metal frames by various contact inserts and can be arranged according to individual customer requests

• 1 - 108 pins

• Rated current up to 325 A

• Rated voltage up to 1000 V

Connectors of this series may be engaged or disengaged when live but without electrical load. If the connectors are mated or unmated under load, the load shall be reduced to 10% of the rated current.

Processing and assembly instructions can be found in our separate catalogue for tools.

We recommend using the high profile housings/ hoods for the heavy|mate F inserts. Empty module spaces have to be filled with blind modules. Torque for PE connection is 1.2 Nm.
