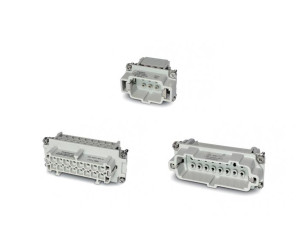

heavy|mate C146E

The rectangular connectors of the heavy|mate C146 E series are characterized by the following features:

  • 6 - 48 pin

  • Termination: screw, crimp, tension spring, push-in

  • Rated current 16 A

  • Rated voltage 500 V

  • Special version EE 10 - 46 pins

  • Special version EEE 40 - 64 pins

  • Connectors are intermateable and interchangeable with all third-party products according to standard norm

Connectors of this series may be engaged or disengaged when live but without electrical load. If the connectors are mated or unmated under load, the load shall be reduced to 10% of the rated current.

Take a look into our separate catalog for Tools to get further information on crimping tools and processing instructions.

Low and high-profile housings can be used for the heavy|mate E series.

If wire ferrules are used, screw terminals without wire protection are preferred.
