C146 10A040 000 2

Data Overview

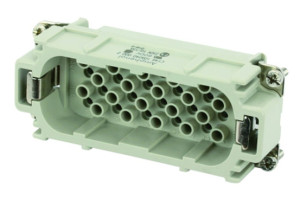

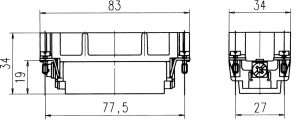

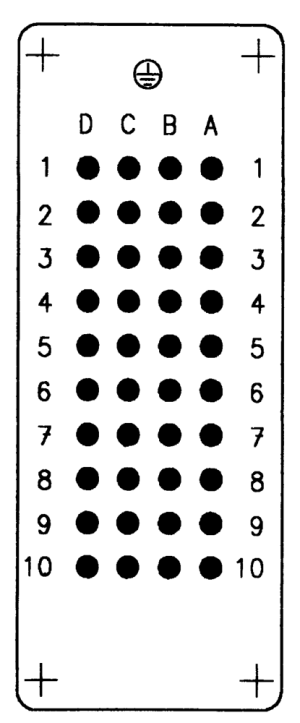

Description: C146D; Male Insert 40 Pole; Crimp
rated current (40 °C) 10 A
number of positions (w/o PE) 40
rated voltage 250 V
IP-class mated IP20

Product Availability and Price

Product Availability
Packing Unit: 10 Pieces
Min. Order Quantity: 10 Pieces
Price per Piece: €9.20
Total Price plus VAT: €92.00
Send Request
We load the stock please wait a second...

Technical Data

part category male insert
gender male
IP-class mated IP20
number of positions (w/o PE) 40
contact diameter 1,6 mm
rated current (40 °C) 10 A
rated voltage 250 V
max. wire gauge 2.5
min. wire gauge 0.14
upper temperature 125 GC
lower temperature -40 GC
