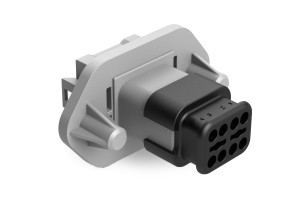

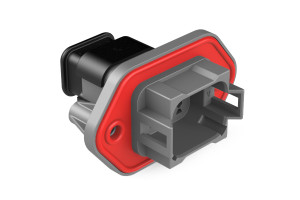

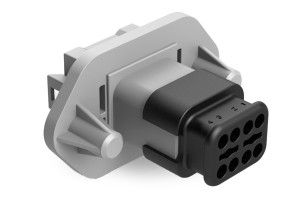

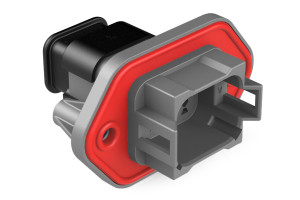

AT04-08PA-PM16
| Description: | Male Receptacle 8pol A-Key, Sealed Flange, Strain Relief Reduced Dia. Seal |
| Product Availability |
| Packing Unit: | 150 Pieces |
| Min. Order Quantity: | 900 Pieces |
| Price per Piece: | €2.16 |
| Total Price plus VAT: | €1,944.00 |
We load the stock please wait a second...
Technical Data
| part category | male receptacle |
| number of positions (w/o PE) | 8 |
| gender | male |
| IP-class mated | IP67 |
| contact diameter | #16 |
| wedge | AW8P |
| rated current (40 °C) | 13 A |
| rated voltage | 250 V |
| max. wire gauge | 2.5 |
| min. wire gauge | 0.34 |
| upper temperature | 125 GC |
| lower temperature | -55 GC |
