AT04-2P-PM16

Data Overview

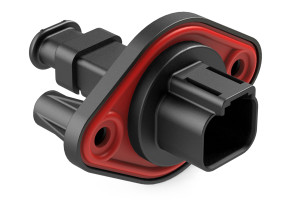

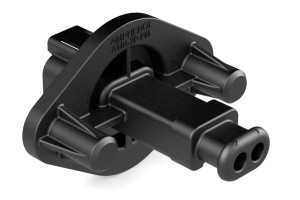

Description: Male Receptacle 2pol, Sealed Flange, Strain Relief Reduced Dia. Seal
rated current (40 °C) 13 A
number of positions (w/o PE) 2
rated voltage 250 V
IP-class mated IP67

Product Availability and Price

Product Availability
Packing Unit: 200 Pieces
Min. Order Quantity: 1,000 Pieces
Price per Piece: €1.52
Total Price plus VAT: €1,520.00
Send Request
We load the stock please wait a second...

Technical Data

part category male receptacle
number of positions (w/o PE) 2
gender male
IP-class mated IP67
contact diameter #16
rated current (40 °C) 13 A
rated voltage 250 V
max. wire gauge 2.5
min. wire gauge 0.34
upper temperature 125 GC
lower temperature -55 GC

This might interest you

Accessory
Contact
prev
next

Accessory

Housing

Contact

Disclaimer: No liability is accepted for the correctness and completeness of the suggested accessories.
