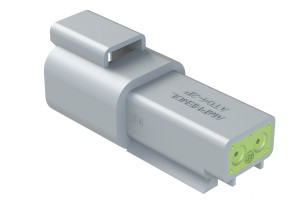

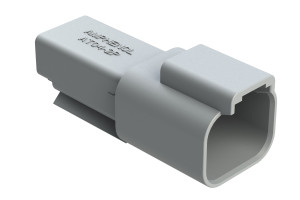

AT04-2P-RD01
| Description: | Male Cable Connector 2pol, Reduced Dia. Seal |
| Product Availability |
| Packing Unit: | 1,000 Pieces |
| Min. Order Quantity: | 1,000 Pieces |
| Price per Piece: | €0.29 |
| Total Price plus VAT: | €290.00 |
We load the stock please wait a second...
Technical Data
| part category | male cable connector |
| number of positions (w/o PE) | 2 |
| gender | male |
| IP-class mated | IP67 |
| contact diameter | #16 |
| wedge | AW2P |
| rated current (40 °C) | 13 A |
| rated voltage | 250 V |
| max. wire gauge | 2.5 |
| min. wire gauge | 0.34 |
| upper temperature | 125 GC |
| lower temperature | -55 GC |
Wedge
Disclaimer: No liability is accepted for the correctness and completeness of the suggested accessories.
