AT06-08SA-RDBLK

Data Overview

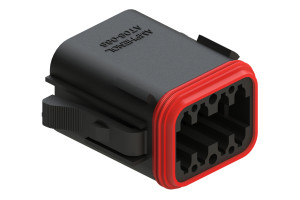

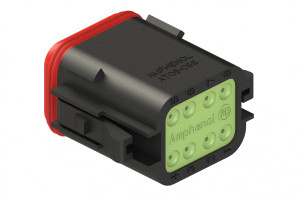

Description: Female Cable Connector 8pol A-Key, Reduced Dia. Seal
rated current (40 °C) 13 A
number of positions (w/o PE) 8
rated voltage 250 V
IP-class mated IP67

Product Availability and Price

Product Availability
Packing Unit: 480 Pieces
Min. Order Quantity: 480 Pieces
Price per Piece: €1.36
Total Price plus VAT: €652.80
Send Request
We load the stock please wait a second...

Technical Data

part category female cable connector
number of positions (w/o PE) 8
gender female
IP-class mated IP67
contact diameter #16
rated current (40 °C) 13 A
rated voltage 250 V
max. wire gauge 2.5
min. wire gauge 0.34
upper temperature 125 GC
lower temperature -55 GC
