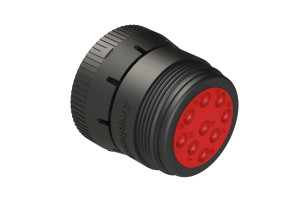

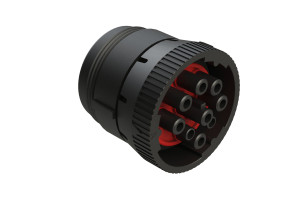

AHD16-9-1939SE
| Description: | Female Cable Connector 9pol, J1939, Reduced Dia. Seal |
| rated current (40 °C) | 13 A |
| number of positions (w/o PE) | 9 |
| rated voltage | 250 V |
| IP-class mated | IP67 |
| Product Availability |
| Packing Unit: | 200 Pieces |
| Min. Order Quantity: | 200 Pieces |
| Price per Piece: | €3.83 |
| Total Price plus VAT: | €766.00 |
We load the stock please wait a second...
Technical Data
| part category | female cable connector |
| number of positions (w/o PE) | 9 |
| gender | female |
| IP-class mated | IP67 |
| contact diameter | #16 |
| rated current (40 °C) | 13 A |
| rated voltage | 250 V |
| max. wire gauge | 2.5 |
| min. wire gauge | 0.34 |
| upper temperature | 125 GC |
| lower temperature | -55 GC |
Wedge
